What is network mapping?

Network mapping is the process of discovering and documenting all devices connected to a network, including routers, computers, servers, switches, and cloud resources. It involves scanning the network to identify present devices and how they communicate.

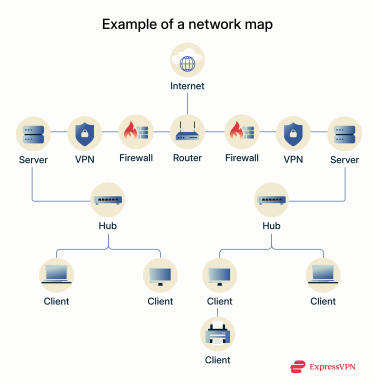

The result of that process is a network map (also called a network diagram), which is a visual representation of all connected devices and how they interact with one another.

Network administrators use network maps to troubleshoot issues such as outages, bottlenecks, or misconfigurations, and to assess their impact. For example, when a server goes down, a well-made network map can quickly show which devices and users are affected.

Why network mapping matters

Network mapping is the only way for a network administrator to get a clear and accurate understanding of the network before trying to manage it. Without a network map, it’s like running a network on guesswork.

Here are the benefits that come from the visibility gained with a network map:

"Security benefits of network mapping

You can’t protect what you don’t understand. Network mapping provides the insight that helps find weak spots network admins can fix before they’re exploited.

• Identifying unknown devices: The network admin can see every device connected to the network, so any device that isn’t authorized to be there or that they just don’t recognize is easy to spot. This kind of visibility helps prevent attacks similar to wardriving, where people search for and exploit open or poorly protected wireless networks.
• Detecting threats in real time: When a device starts acting out of the ordinary, like trying to connect to servers or devices it normally wouldn’t, the network admin can quickly catch it and take steps to stop it before it spreads.
• Assessing potential vulnerabilities: Some mapping tools also show device health and status, which helps administrators find outdated or poorly configured systems and patch them before they become risks.
• Improving incident response and forensics: When a security issue happens, a network map helps administrators see how the attack moved through the system and which devices were affected. That makes it faster to isolate the problem, recover, and prevent it from happening again.

Performance and troubleshooting advantages

A network map helps administrators understand how data moves across the network and where traffic tends to build up. That knowledge makes it easier to keep things running efficiently.

Here’s how it helps in practice:

• Balancing load: Mapping shows which devices or connections handle the most traffic. If one part of the network is overloaded while others sit idle, administrators can redistribute that traffic so no single link or device gets overwhelmed.
• Preventing congestion: A network admin can spot bottlenecks on a network map, like routers or switches handling more data than they should. From there, they can adjust configurations, upgrade hardware, or reroute data to keep performance steady.
• Reducing downtime: When something does slow down or fail, a network map points straight to the affected area, so the issue can be fixed faster and with less disruption.

When network maps are paired with alerts and monitoring software, administrators can also quickly find device-specific issues and fix them.

Planning and scalability improvements

Network mapping shows administrators existing system inventory, which helps them decide where more devices can be added or what devices need replacing for security and performance benefits. These decisions must be carefully taken to prevent device compatibility issues or performance losses.

How network mapping works

Network maps can be created manually or generated automatically with network mapping software.

• Manual network mapping involves IT staff identifying and documenting devices by hand, then using visualization tools to build a diagram that reflects the network’s structure.
• Automated network mapping uses software that scans the network, discovers connected devices, and generates a self-updating map.

Manual mapping methods

Manual network mapping starts with administrators locating every device on the network, including routers, switches, firewalls, servers, and endpoints such as computers, phones, and printers. They record each device’s details, such as its name, IP address, MAC address, physical location, and role in the network, and document how they connect to one another.

Administrators then create diagrams, either by hand or with visualization software, to show how data moves across the network. They update the map manually whenever new devices appear or configurations change, which requires regular checks to keep the information accurate and complete.

Auto-discovery and real-time monitoring

Automated network mapping tools use auto-discovery protocols to scan the network and detect connected devices. The software builds detailed profiles for each one, including its IP address, device type, operating system, and resource usage.

The software then builds a visual map that updates in real time. As the network evolves, for example, when new devices connect, existing ones change roles, or equipment is removed, the map refreshes automatically to reflect the current layout.

Automated vs. manual approaches

If you’re deciding between manual and automated approaches, the choice usually comes down to scale, complexity, and how often your network changes.

Manual mapping offers full customization but demands constant upkeep, as it relies on human documentation and periodic updates. This makes it mostly suitable for very small networks with only a couple of devices connected, where you don’t expect constant network updates.

Automated mapping, on the other hand, continuously discovers and tracks network changes through software-driven monitoring. This approach is more suitable when handling mid- to large-sized networks, where network changes are more frequent and demanding.

The table below presents key differences between manual and automatic network mapping.

Types of network maps and topologies

Network maps can take several forms, each offering a different way to visualize how devices and data interact. The type of map you use depends on your goals, whether you’re tracking physical hardware or monitoring data flow.

Network topology vs. network maps

A network map is a visual diagram that portrays how devices on a network connect and communicate. It shows what’s on a network and how everything is linked together.

A network topology describes the layout or pattern of those connections that determines how data moves through the network.

Physical network maps

Physical network maps show the hardware that makes up the network, including devices like computers, routers, switches, printers, and servers, and their cable connections. Physical network maps help administrators identify hardware problems, quickly isolate problematic devices, and minimize their impact.

Logical network maps

Logical network maps track how information moves across the network between the devices and how these devices communicate. They’re essential for managing traffic, improving performance, and detecting security risks such as unauthorized connections.

Layer 2 maps

Layer 2 maps illustrate how devices are connected within the same local network segment. They focus on connections that occur at the data link layer, where devices communicate using MAC addresses.

These maps show how switches, bridges, and access points link devices over Ethernet. They help administrators identify switch-to-device and switch-to-switch relationships and troubleshoot connectivity or performance issues inside a LAN.

Layer 3 maps

Layer 3 maps show how different networks connect to each other through routers or Layer 3 switches. At this layer, communication is based on IP addresses, the unique identifiers that allow data to travel between networks and across the internet.

The result is a clear picture of how data moves between networks and where routing paths exist. Note that because Layer 3 operates above the data-link layer, you won’t see Layer 2 information, like device-level MAC addresses or switch-to-switch connections, on this type of map.

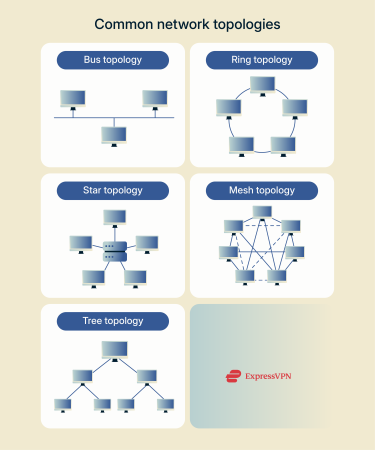

Types of network topologies

Most organizational topologies derive from four basic types: bus, ring, star, and mesh.

Bus topology

In a bus topology, all devices connect to a single main cable, called the bus. This setup allows only one device to send data at a time. This sent data goes out to all connected devices, but only the device it’s meant for processes it (the rest drop it when they see it’s not for them).

This approach suits simpler network setups, though it's mostly outdated in modern networks. The main reason is the potential for collisions. When all devices share a single cable, only one device can successfully send data at a time. If two or more devices try to send data simultaneously, their signals collide. When a collision happens, all the data involved is lost, and each device has to wait a random period before trying again. This makes networks slower and is why this topology doesn’t scale well.

Ring topology

Ring topology connects devices in a cycle where each device has two neighbors. Data typically flows unidirectionally (clockwise or counterclockwise), and much like in a bus topology, if one device or connection fails, it can disrupt or slow down the entire network.

Bidirectional ring topologies solve this problem by operating dual concentric rings with data flowing in both directions. If one ring fails, data reverses direction to use the other ring, maintaining network functionality.

Star topology

Star topology connects all devices to a central device (a switch or a router). All devices share a single communication line to the central device, which manages the flow of data between devices, sending messages directly to their intended destinations.

This setup reduces signal interference and data collisions, which are big issues in a bus topology. It’s also easy to scale: new devices can be added to the hub without disrupting the rest of the network.

However, the star topology still has a single point of failure: if the central hub or switch goes down, the entire network becomes inoperable.

Tree topology

Tree topology combines features of both bus and star topologies. It connects devices in layers, forming a clear hierarchy: the network starts from a main root device at the top, which connects to several branch devices, and each branch connects to additional devices or smaller networks, forming a tree-like layout.

The tree topology is one of the most widely used because it’s easy to expand and organize. You can add new devices by extending branches without disrupting the rest of the network, which makes it ideal for large setups like schools, offices, and enterprises. However, it relies heavily on the main backbone connection by default: if that link fails, large sections of the network lose communication.

Mesh topology

Mesh topology connects each device to multiple other devices, creating a highly resilient network with no single point of failure. Unlike bus or ring topologies, if one link fails, data automatically reroutes through another path.

There are two types: full and partial mesh topologies.

In a full mesh topology, every node connects to every other node. If one data path fails, automatic failover activates alternate routes. Partial mesh topologies reduce costs by connecting only critical devices to all nodes while limiting non-critical system connections.

Learn more in our guide to mesh Wi-Fi networks.

Hybrid topology

Hybrid topology combines two or more different network topologies, such as star, bus, ring, or mesh, to create a design that best fits an organization’s needs.

For example, a company might use a star topology to connect office computers through a central switch while linking critical servers in a mesh topology to make sure there’s no single point of failure. This approach allows administrators to balance performance, cost, and reliability.

Network mapping tools and software

Network mapping tools automatically scan, visualize, and monitor the devices and connections that make up your network.

There are two main types:

• Standalone tools that focus purely on mapping and visualization, providing a clear layout of how devices connect.
• All-in-one tools that combine mapping with features like performance monitoring, alerts, and analytics to give a complete view of network health.

Key features to look for

Choosing the right tool depends on your budget, network size, and management goals. Some teams only need a visual map, while others want full automation and real-time insights. When comparing options, consider:

• Ease of use: While network mapping is technical, routine administrative tasks (like adding sites and changing credentials) should require minimal networking expertise.
• Depth of details: Comprehensive software provides extensive data. Prioritize tools offering details relevant to your specific management needs.
• Customizable alerts: Configure specific alerts for custom events rather than relying on generic, one-size-fits-all solutions.
• Real-time network mapping: Select systems that update device status in near real-time, enabling faster decision-making and improved health monitoring.
• Scalability: Choose tools with proven performance across multiple regions, thousands of nodes, and multi-cloud environments to ensure future growth capacity.
• Security: Prioritize tools offering encryption for data in transit and at rest, plus compliance with relevant regulatory standards.
• Support: Tools with comprehensive documentation, accessible support systems, and quick response times provide greater long-term value.

Pricing

Network mapping software is typically sold through two main pricing models:

• Subscription-based plans, where you pay monthly or annually.
• Perpetual licenses, where you pay once for long-term use (often with optional support renewals).

Most vendors charge based on how large your network is, either per device or in tiers.

• Per-device pricing means you pay a set amount for each device the tool monitors. It’s flexible and predictable for small or growing networks, since you only pay more as you add new devices.
• Tiered pricing groups devices into ranges (for example, 1–100 devices, 101–500 devices, and so on). This model usually offers better value for large networks, since the per-device cost goes down as you scale.

To compare options, calculate your cost per device. For example, a $50/month plan for 100 devices costs about $0.50 per device, but a $2,000/year plan for the same network works out to $1.67 per device per month.

The cheaper plan might look better, but it’s best to always check what’s included: features, support, and update frequency can make a big difference.

Some vendors charge extra for advanced capabilities like AI and machine learning analytics due to the significant computational resources required. These features analyze network patterns continuously to predict issues before they occur, which offsets the cost for complex networks with low downtime tolerance.

Additionally, budget for miscellaneous costs, such as onboarding fees, setup charges, and data storage overages. This caters to implementation support, initial network discovery, configuration assistance, staff training, higher-tier support packages for faster response times, and dedicated account managers.

Open-source vs. paid tools

Open-source tools offer low costs and flexibility for diverse network needs. However, cost savings are offset by increased engineer workload for customization and the lack of dedicated support for novel issues.

Paid tools eliminate these downsides at a significant upfront cost, offering faster, feature-rich implementations and dedicated support. However, rigid tools may limit customization and scalability.

Best practices for effective network mapping

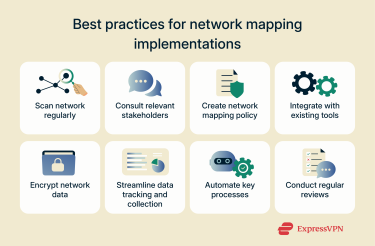

Follow these best practices for optimal network mapping results:

• Scan your network regularly: Static maps don't reveal new devices or emerging issues. Schedule regular scans to maintain the current network status.
• Prioritize clarity over complexity: A detailed map is valuable only if it’s easy to interpret. Use consistent labels, clear legends, and logical groupings to make your map useful at a glance.
• Use layers of visibility: Combining physical and logical views helps you see both how devices connect and how data moves through the network.
• Consult relevant stakeholders: Include network managers, administrators, and IT teams in the mapping process to increase adoption and success rates.
• Create a network mapping policy: Document the network map and define standard operating procedures to improve accountability and enable seamless management transitions.
• Integrate with existing tools: Integrate mapping software with existing management tools to streamline data collection and analysis. Integration provides richer insights than siloed data.
• Ensure data security: Mapping tools collect sensitive information on network health, device status, and vulnerabilities. Encrypt this data to prevent attackers from exploiting it.
• Automate key processes: Automate alerts, health scans, and critical reporting to improve efficiency and monitoring capabilities.
• Conduct regular reviews: Periodic reviews reveal problems requiring fixes and opportunities for performance improvements.

How VPNs can bring order to network mapping

A virtual private network (VPN) can make network mapping more organized, which can be of significant help when you’re trying to map your network.

Without a VPN, remote users, branch offices, and outside resources might connect through a mix of public IP addresses, changing routes, or third-party services. From a mapping perspective, that means connections shift constantly, and it’s hard to tell what belongs to your network and what doesn’t.

A VPN changes that by creating clear, consistent pathways between locations. With a site-to-site or hub-and-spoke VPN (VPNs that connect remote sites), every branch office connects through a fixed, secure tunnel. On your map, that means you can easily see which sites connect where, how traffic flows, and where to focus your monitoring or troubleshooting.

Common mistakes to avoid

Network mapping platforms have limitations. IT leaders and network managers should address common challenges:

• Outdated or incomplete maps: Poor network visibility creates false security and leaves nodes vulnerable to attack.
• Cluttered visuals: Excessive information reduces visibility instead of improving it.
• Poor integration: Siloed data prevents comprehensive network visibility. Integrate mapping software and data with other network systems for informed decision-making.
• Lack of cloud support: Dynamic cloud environments require tools with near-real-time detection and monitoring capabilities. Without them, organizations lose visibility into this critical infrastructure component.
• Poor data governance: Strong governance addresses software limitations, particularly regarding data management and security.

Network mapping use cases

Network mapping serves critical functions across multiple industries.

Education

Schools use network mapping software to identify and manage computers, routers, switches, cameras, and connected systems like HVAC equipment.

Network mapping helps IT staff keep track of every device, spot unusual activity, and fix problems before they spread. For districts managing multiple campuses, it also simplifies troubleshooting and ensures critical systems stay online during busy school hours.

Financial services

Banks, trading firms, and other financial institutions rely on complex networks that connect everything from customer databases to payment gateways. A single outage or delay can disrupt transactions or expose sensitive data.

Network mapping helps IT teams pinpoint problems quickly, whether it’s a failing switch or a misconfigured server. It also brings older and newer systems under one view, making it easier to monitor traffic and spot unusual or unauthorized connections before they become security incidents.

Telecommunications

Telecom networks span vast areas and thousands of connected devices, so even minor outages can affect thousands of users and services.

Network mapping helps engineers detect faults faster, route traffic around problem areas, and keep critical systems running with minimal downtime. By automating routine monitoring, mapping also frees teams to focus on expanding infrastructure and improving service quality instead of constantly troubleshooting.

Healthcare

Hospitals and clinics depend on connected systems, from imaging equipment and patient monitoring devices to electronic health record servers. When any of those connections fail, it can interrupt care or delay access to critical data.

Network mapping helps healthcare IT teams see when something stops working, and it also supports security compliance by helping staff spot unauthorized devices or unusual traffic before it leads to a data breach.

Government

Network maps simplify device identification and management for local, state, and federal government institutions operating across multiple offices or singular complex setups.

Network maps help administrators locate devices, monitor their condition, and respond quickly when something goes wrong. They also make it easier to trace problems that affect critical services or public systems, reducing downtime and security risks across departments.

Manufacturing

Network mapping software gives manufacturers a live view of how all systems connect and communicate, from design workstations and production-line sensors to quality testing and logistics platforms.

It helps identify where data flow breaks down, whether it’s a faulty switch, a disconnected sensor, or a misconfigured router, so problems can be fixed faster. That visibility reduces downtime, improves production efficiency, and prevents the same issues from recurring.
